Humphree – Stabilisation system
Humphree stabilising fins brings state of the art technology with fast acting brushless electric servo units. Powered by 24 V DC it gives you possibility to have full comfort without the need of genset running. The new Humphree fin design has its upper edge made solid, another unique Humphree innovation.
Humphree’s patented design of the Interceptor is a compact and robust unit that has an adjustable blade that goes down vertically into the water. Due to that it doesn’t work against the water pressure that it builds up under the hull, it can be adjusted very fast and with high precision. Its compact design also makes it less vulnerable to impacts.
The main parts of the Humphree Interceptor is constructed in composite material which means that it is maintenance free for changing zinc anodes, as the material is not affected by salt water. However we recommend to check the system on yearly basis to keep it in trim and to discover any possible damage to the system.
If there is any damage to the Interceptor, Humphree can supply any individual parts that you might require for service. Please find more information about service in our operators manual, which can be found under Humphree downloads.
About Employment Opportunities ABYC Certified Contact
Units

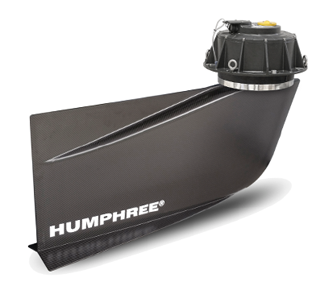

Stabilising Fin
Regular price $123,456.00
Features & benefits
The new electric fin stabilising system from Humphree brings a cost and power effective stabilising system to the marine market.
To control Roll and Pitch motions on board the vessel improves the ride and comfort for the crew and passengers. For better damping efficiency of a Fin Ride Control system is a proven design for underway stabilisation.
24V DC
Powered directly from the power bank in the vessel there is no need for complicated installations with hydraulic pipes.
Designed for 24/7 operating time
No matter how many hours you have of operation per year, the Humphree pitch fins will keep your vessel stabilised.
Brushless electric motors
The electric motors have a minimum requirement of service.
Classified installation
The installation can be class aproved.
Specifications
Rated Speed | 4,400 RPM |
Angular Momentum at Rated RPM | 30,000 N-M-S |
Anti-Rolling Torque at Rated RPM | 62,571 N-M |
Spool-up Time to Rated RPM | 75 minutes (4,400 RPM) |
Spool-up Time to Stabilization | 50 minutes (3,500 RPM) |
Spool-up Power | |
AC Motor | 3000 Watts Max |
DC Motor | 240 Watts |
Operating Power | |
AC Motor (sea state dependent) | 2000 – 3000 Watts |
DC Motor | 240 Watts |
AC Input Voltage | 208 – 230 VAC (+/- 10%), 50/60 Hz, Single Phase |
DC Input Voltage | 24 VDC @ 10 Amps |
Weight | 3,920 lbs (1,778 kg) |
Envelope Dimensions | 54.3 L x 55.9 W x 43.5 H (inches) 1.38 L x 1.42 W x 1.11 H (meters) |
Noise Output | 72-74 dBC at 1 meter |
